SS 316 316L Stainless Steel Pipe
- Grade: 316 316L (1.4401/1.4404)
- Outside Diameter: 6mm-820mm
- Thickness: 1mm~50mm
- Standard: ASTM/JIS/EN/GB
We keep 5000 tons/month 304 stainless steel stock every month, and update new resource every week. Please feel free to tell me if you need any stainless steel products soon.
Product description
Alloy 316/316L resists atmospheric corrosion, as well as, moderately oxidizing and reducing environments. It also resists corrosion in polluted marine atmospheres. The alloy has excellent resistance to intergranular corrosion in the as-welded condition. Alloy 316/316L has excellent strength and toughness at cryogenic temperatures.
Alloy 316/316L is non-magnetic in the annealed condition, but can become slightly magnetic as a result of cold working or welding. It can be easily welded and processed by standard shop fabrication practices.
The Specificate Of Stainless Steel Seamless Pipe
| Material Grade | 201 304 304L 310S 316 316L 316 Ti 904L .etc |
| Standard | ASTM,AISI, ASME ,SUS,JIS,EN,DIN,BS,GB .etc |
| Certification | ISO,SGS, BV |
| Brand | JISCO, LISCO, TISCO ,BAO STEEL POSCO/ ZPSS .etc |
| Shape | Round, Square, Rectangular, Oval, Slotted, Embossed, etc. |
| SIZE | OD : 6-820mm |
| Wall Thickness : 1-15mm | |
| Length: 6m or as your requirement | |
| Tolerance | a) Outer Diameter: +/- 0.2mm |
| b) Thickness: +/- 0.02mm | |
| c) Length: +/- 5mm | |
| Ends | 1) Plain |
| 2) Beveled | |
| 3) Thread with Coupling or cap | |
| End protector | 1) Plastic pipe cap |
| 2) Iron protector | |
| Payment terms | L/C TT |
| Application | Decoration, construction & building, such as handrail, railing, window, furniture, etc. |
| Package | Standard export packing or as per customer’s request. |
| Deliver time | 5-10 days according to quantity |
Chemical Component Of Stainless Steel Pipe
| Grade | C | Cr | Ni | Mn | P | S | Mo | Si |
| 201 | ≤0.15 | 16.00-18.00 | 3.50-5.50 | 5.50－7.50 | ≤0.060 | ≤0.030 | - | ≤1.00 |
| 304 | ≤0.07 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 |
| 304L | ≤0.030 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 |
| 310S | ≤0.08 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 |
| 316 | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 |
| 316L | ≤0.030 | 16.00-18.00 | 12.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 |
| 316Ti | ≤0.08 | 16.00-19.00 | 10.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 1.80-2.50 | ≤1.00 |
| 904L | ≤0.02 | 19.00-23.00 | 23.0-28.0 | ≤2.00 | ≤0.045 | ≤0.035 | 4.0-5.0 | ≤1.00 |

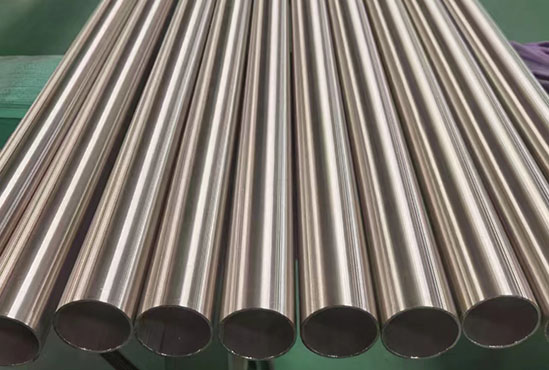

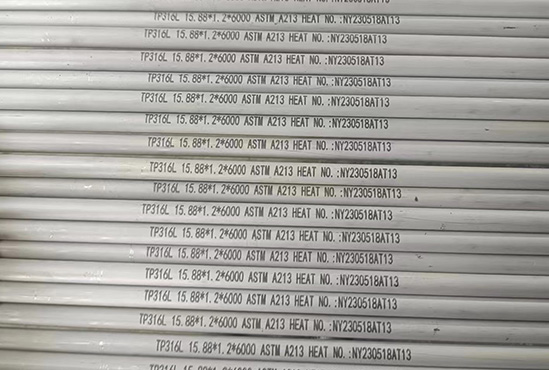

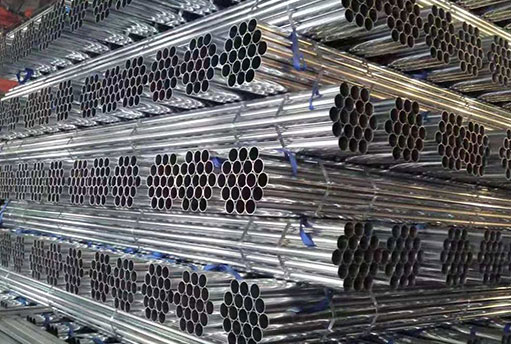

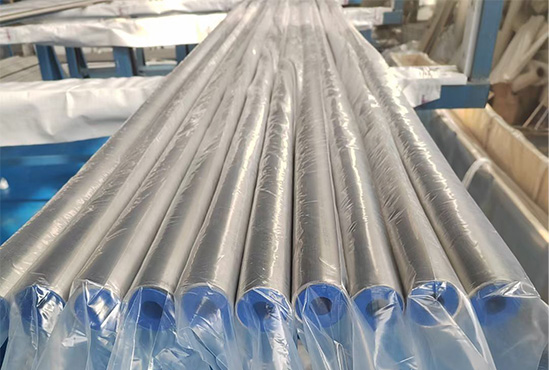

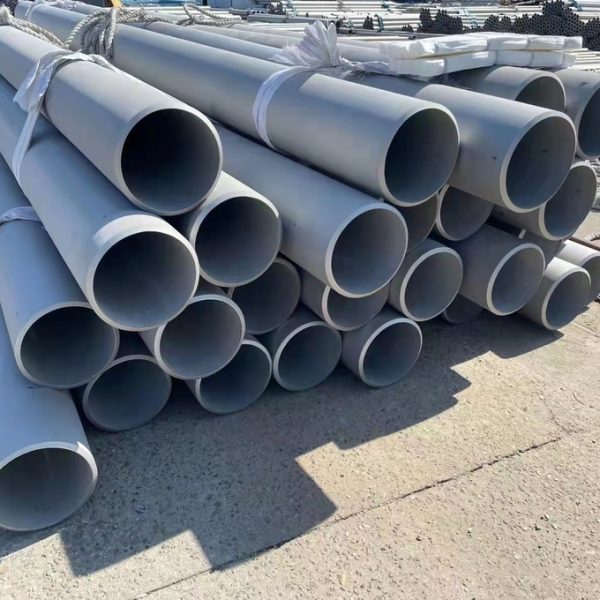

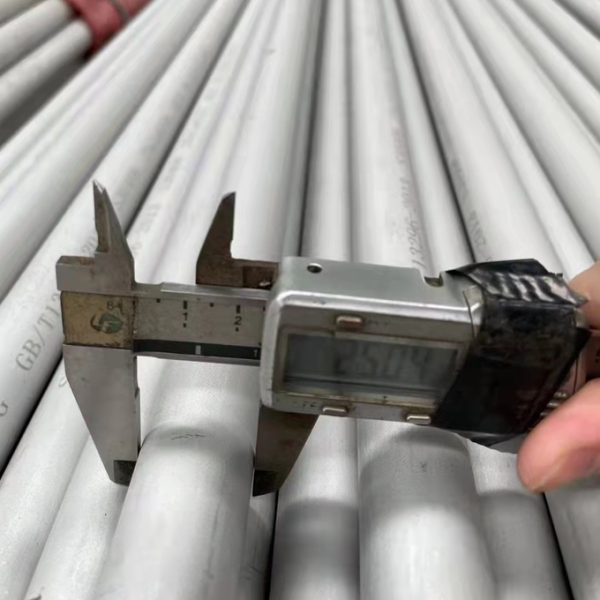

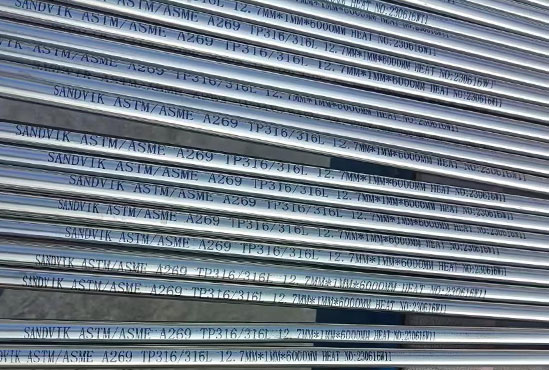

Product Shows Of Stainless Steel Seamless Pipe
Common Seamless Pipe Sizes For Reference
| DN(mm) | Outer diameter (mm) | Wall thickness (mm) |
| 25 | 32 | 3.5 |
| 32 | 38 | 3.5 |
| 40 | 45 | 3.5 |
| 50 | 57 | 3.5 |
| 70 | 73 | 4 |
| 80 | 89 | 4 |
| 100 | 108 | 4 |
| 125 | 133 | 4 |
| 150 | 159 | 4.5 |
| 200 | 219 | 6 |
| 250 | 273 | 8 |
| 300 | 325 | 8 |
| 350 | 377 | 9 |
| 400 | 426 | 9 |
| 450 | 480 | 9 |
| 500 | 530 | 9 |
| 600 | 630 | 9 |
Application
Stainless steel pipes are widely used in below fields:
- 1.Construction building material, curtain wall bracket, guardrai/handrailing material .
- 2.Petroleum oil and gas transmission,coal.
- 3.Decoration, chemical engineering, food processing.
- 4.Indoor pipeline, water heater, boiler, bathtub etc
Packing &Shipping
We provide ordinary packaging for free, and can also customize packaging and logo according to buyers
Packing:
- In bundle, black, caps, beveled ends or plain ends
- OEM/ customer's REQUEST
- Marks: Standard * Material*OD*WT*L *Lott No./required
Shipping:
- Length: ≤5.85m, loaded in 20FT Container, Max 22tons
- Length: ≤11.85m, loaded in 40 FT Container, Max 27tons
- Length: ≥12m, shipped by bulk vessel. FILO terms
