Hot rolled stainless clad steel plate
- Base Grade：Mild steel material, like Q235,Q245R,Q345R etc.
- Cladding Grade：Stainless steel material ,like201/2304L/316L/321/310/410/420/430/904L/2205/2507,Nickel Base Alloy etc.
- Thickness：The minimum thickness of stainless steel cladding is 0.5mm, The maximum thickness can reach up to 15mm, The total thickness of clad plate range between 3mm-70mm.
- Technique: Hot Rolled
We will update new resouce every week. Pls feel free to let me know if you have any stainless steel composite panels products soon
Product Description
The Cladded Steel Plates are widely used in the electrolytic aluminum, petroleum, chemicals, salt-making, seawater desalination, water conservation and hydropower, ships, pharmacy, metallurgy, electric power, aerospace, environmental protection and many other industries.
Common size in stock of clad plates
| Thickness(mm) | Width(mm) | Length(mm) |
| 8+2 | 3500 | 9000 |
| 8+2 | 3500 | 10000 |
| 8+2 | 4000 | 1000 |
| 8+2 | 3500 | 12000 |
The Specificate Of Stainless Steel Clad Sheet
| Type | Base Material | Cladding Material |
| Common Stainless steel / steel composite plate | ASTM A36, A516Gr60,16Mn,16MnD,Q235,Q245R,Q345R,Q370QE bridge steel,Weathering steel, pipeline steel,etc | 201,304L,316L,321,310,410,430,2205,904L,Nickel Base Alloy .etc |
| Nickel/steel composite plate | N02201,N02200,N04400,N08800,N08810,N08825,N06600.etc | |
| Titanium/Stainless steel composite plate | 1Cr13, 2Cr13 430(S43000, 1.4316) 304(S30400, 1.4301) 304L(S30403, 1.4304) 316L(S31603, 1.4404) 316Ti(S31635,1.4571) 309S(S30908, 1.4833) 310S(S31008, 1.4845) 321(S32100, 1.4541) 904L 2205(S31803, 1.4462) 2507(S32570,1.4410) |
TA1 TA2 TA9 TA10 |
Advantages of Hot rolled stainless steel clad plate
1.Combined the benefits of both the base material and the cladding material .
2.Cost-effective, perfect cost-performance.
3.High production efficiency, fast delivery time.
4.Thickness of both the base and cladding materials are customizable.
5.The maximum width is 4500mm, the maximum length is 15000mm.
Product Processing Hot Rolled Cladding Plates process is as follows:
1. Design and manufacture of composite plate billet. According to the specifications of carbon steel and stainless steel raw materials and the process parameters of rolling mill and heating system, the composition ratio of composite billet is reasonably designed. To obtain accurate composite board finished dimensions. The composite billet manufacturing process involves raw material surface processing, brazing and diffusion welding technology, isolation and vacuum technology. Ensure good physical process properties of the composite interface.
2.Composite slab heating. Composite billets are usually heated in push-steel or stepping continuous heating furnaces. The thick composite plate should also enter the pit furnace for soaking heat.
3. Composite plate rolling as much as possible with a larger reduction rate and a larger compression ratio. Various container composite plates adopt controlled rolling and controlled cooling processes to ensure the physical properties of products. Thicker composite plates are also normalized by normalizing furnaces.
4. Composite board finishing and inspection. The composite plate is cut to the desired length and width by a shear or plasma, and straightened using a roller cold straightener or a press. Large straightening machinery is required. GB/T8165-2008 is performed for hot-rolled composite plate inspection. Its main indicators are higher than the Japanese JISG3601-1990 standard.
Application
Thermal power industry, more and more Titanium clad steel plates and Duplex stainless steel clad plates are used in chimney building and Coal-fired flue gas desulphurization equipment.

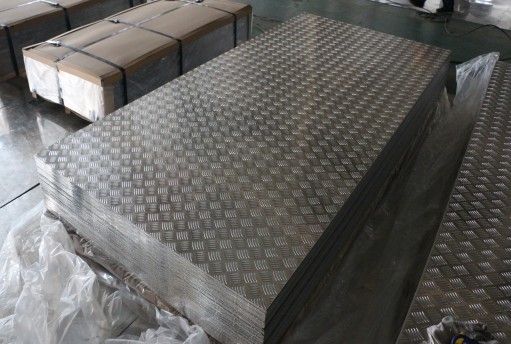

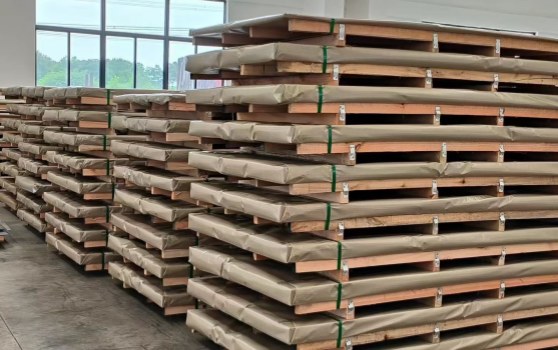

Other hot sell products in stock
