Copper Coils and Strip
- Thickness:0.05-3.0mm
- Width：10-1050mm
- Temper: M,Y2,Y
- Processing Mode: Laser machine,CNC computer gong,engraving machine,milling machine (support retail cutting)
We can provide full range of copper brass products, Pls feel free to let me know if you have any copper sheets plates products soon
Product description
Products details of CuCrAgFeTiSi C18080
Cu-Cr-Ag-Fe-Ti-Si alloy is a high-strength high-conductivity alloy with excellent. Electrical conductivity,thermal conductivity, stress relaxation resistance, excellent cold workability. Widely used in Plug components on automotive, electrical equipment, etc.. With the rapid development of miniaturization and high-density of Device,it is also used in the companents for the electrical industry.
Mechanical Properties
| Density(g/cm3) | 8.92 |
| Electrical conductivity{IACS%(20℃)} | 79 |
| Modulus of elasticity(KN/mm2) | 140 |
| Thermal conductivity{W/(m*K)} | 320 |
| Coefficient of thermal expansioon(10-6/℃ 20/℃~100/℃) | 17.6 |
Mechanical Property
| Temper | Tensile Strength | Elongation A50 | Hardness |
| (Rm,Mpa) | (%) | (HV) | |
| R480 | 480-560 | ≥7 | 140-170 |
| R540 | 540-630 | ≥2 | 150-180 |
| TR08 | 520-620 | ≥7 | 160-190 |
Products details
| Item | Copper Coil / Copper Strip |
| Standard | JIS H3100-2006 ,ASTM B152M-06,GB/T 2040-2008,ROCT 495-92,EN 1652-98,ASTM B171M-04, |
| Material | C12300,C1020P,C10100,C10400,C10700,C10200,T2,C1100P,C10500,M1, |
| Cu-ETP,TP1,C1201P,C11000,Cu-DLP,TP2,C1220P,C1221P,C1200,C12200, | |
| C14200,C23000P,H62,C2801P,C36500 | |
| Thickness | 0.01mm~20mm |
| Width | 1mm~2500mm |
| Length | Random size and customize or as required |
| Surface | mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required |
| Package | Standard export seaworthy or as customers' requirements |
| Application | Copper coil can be made to do all sorts of deep drawing and bending stress components, |
| such as manufacturing pins,rivets,gasket,nuts,conduits,the barometer spring,screen, | |
| radiator parts, etc |

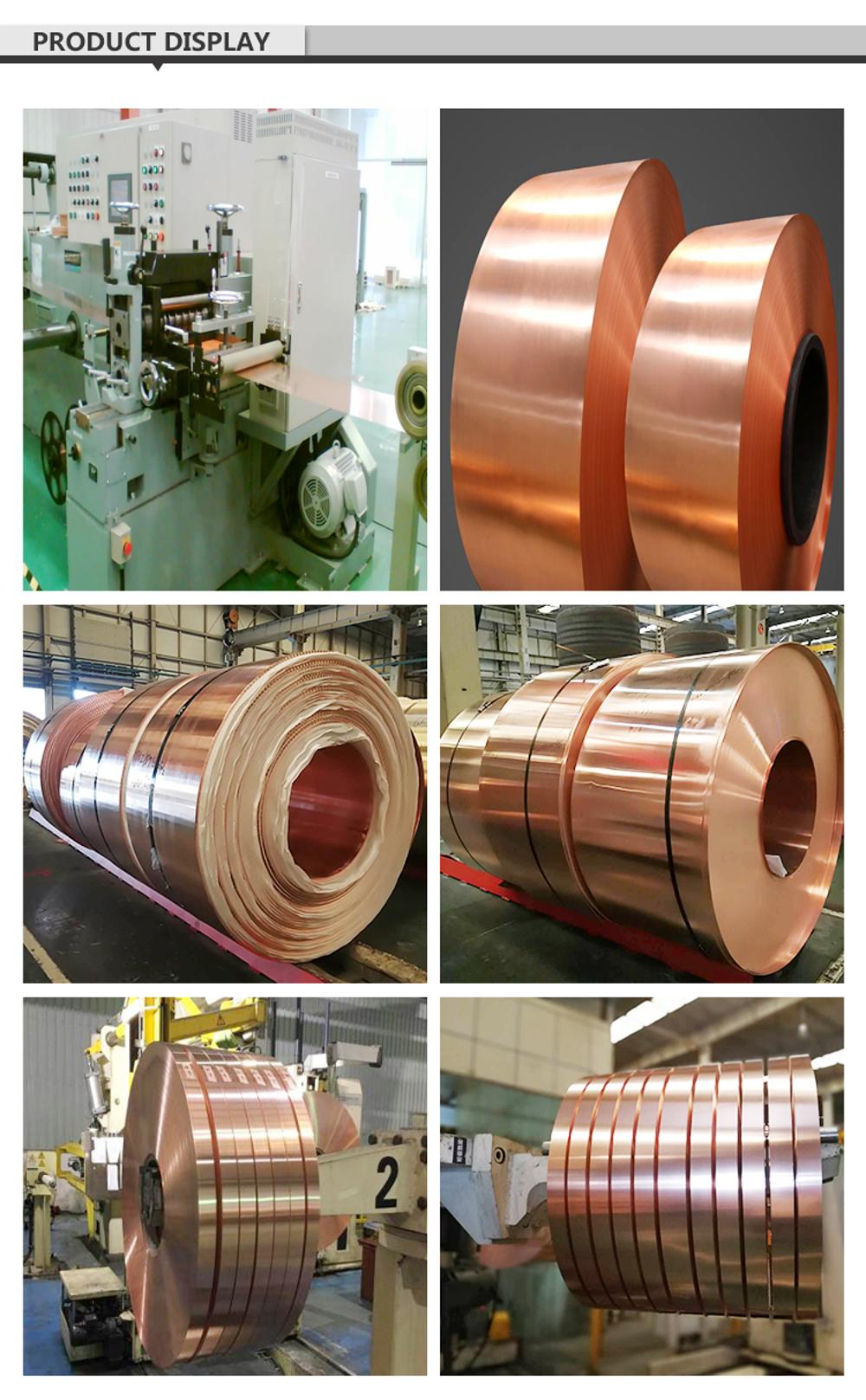

Products Display
