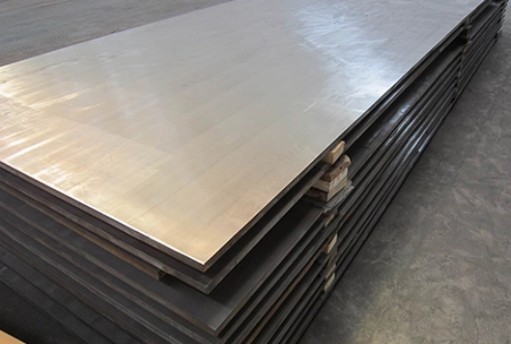

ALLOY 90 Sheets

  • Thick of Plate: 0.5~200mm
  • Material:Nimonic 90 is an alloy made of nickel and chromium, with added titanium and aluminum. It has excellent strength and creep resistance above 982°F and is often used in gas turbine engines. It also offers superior corrosion and oxidation resistance for applications in high-temperature environments.
  • Processing Mode: Laser machine,CNC computer gong,engraving machine,milling machine (support retail cutting)

We can provide full range of nickel alloy sheets plates products, Pls feel free to let me know if you have any alloy bar products soon

Product description

Alloy 90

Alloy 90 equivalent grades: UNS N07090 ,W. Nr. 2.4632,Nimonic 90

General Properties

Nickel Alloy90

ALLOY 90 is a precipitable chromium-plated nickel-cobalt alloy strengthened by the addition of titanium and aluminum. It is known for its low resistivity and high resistance to oxidation and chemical corrosion. It is used in low value resistors, heating wires and pads in heating wires and in extending low temperature heating cables, and in tube welding. Flat and stranded wires are used to protect switches. Maximum operating temperature in air is +400°C. Alloy 90 has high Nimonic properties at temperatures up to 920°C. Alloy 90 is often overused in applications such as turbine blades, hot work tools, exhaust gas reheaters, discs and high temperature springs.

Chemical Composition

Nickel Rest Chromium 18.0 - 21.0
Fe 1.50max Carbon 0.13 max.
Silicon 1.00max Manganese 1.0 max.
Phosphorus 0.02 max. Sulfur 0.015 max.
Titanium 2.0-3.0 Cuprum 0.20max
Aluminum 1.0-2.0 Zirconium 0.15max
Cobalt 15.0-21.0 Boron 0.02max

Product Forms

Bar/Rod : Diameter: 0.5~600mm

Pipe/Tube: OD: 6~630mm ; Wall Thick:0.5~40mm

Coil/Strip : Thick: 0.5~150mm

Plate/sheets : Thick: 0.5~200mm

Application

Alloy90 alloy is mainly used in parts and pipe connectors in high-temperature, high-pressure, and highly corrosive environments such as aviation, petroleum, and chemical industries. Among them, it is widely used in gas turbine engine oxygen injection burners and flow instruments, heat exchangers, automobile brake cylinders, etc. In addition, Alloy90 alloy can also be used to manufacture corrosion-resistant, high-temperature, and high-pressure equipment such as nuclear reactor vessels, chemical reactors, and oil field development equipment.



In short, Alloy90 alloy is a high-strength, high-temperature, and high-corrosion alloy. While it has excellent mechanical properties, corrosion resistance, and processing plasticity, it also has a wide range of application prospects.
